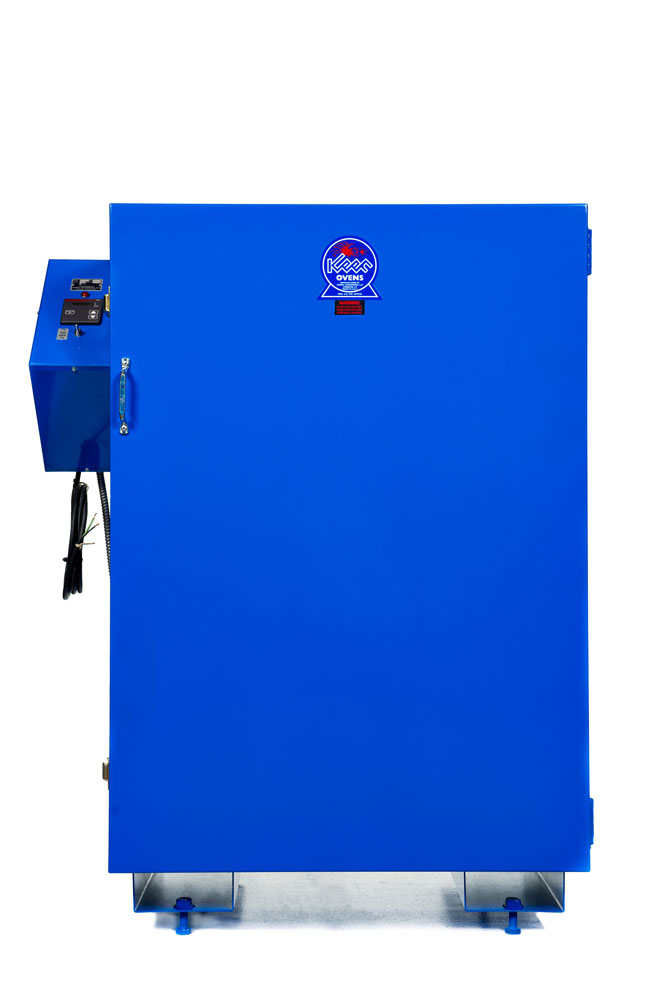

K-1000CH Floor Holding Oven (120V, 240V & 480V)
ROD OVEN K-1000CH 120V - 480 lb
Purpose: To maintain dryness in welding electrodes
Capacity: 1200 lbs of electrodes up to 18” in length
Temperature Range: Ambient – 550F

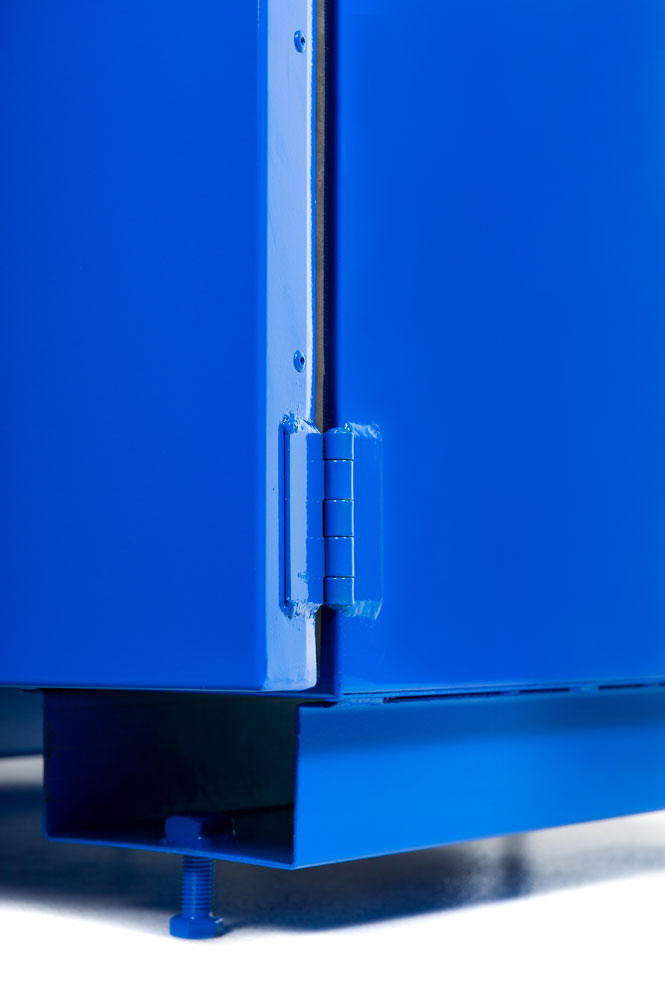

Protect costly low-hydrogen welding electrodes from adverse atmospheric moisture contamination with the Keen K-1000CH welding rod holding oven. This high-quality, American-made product provides a consistently dry, heated environment for long term storage of welding rods. Unique compartmented shelving system is welded-in and accommodates up to 24 / 50 lb standard size welding electrode boxes. This reliable, floor-positioned welding rod oven has a variety of standard features and rugged design elements not found on other brands. Standard digitally-adjustable, ON/OFF microprocessor-based controller with ±1 degree accuracy, over-temperature control, welded door hinges, forklift pockets,and much more. Provides heated storage for 1200 lbs of stick welding rods up to 18 inches in length. Maximum temperature 550F.
Product Overview
About the K-1000CH Floor-Positioned Welding Rod Oven – 1200 lbs. Capacity
The K-1000CH is a large capacity floor-positioned oven that stores up to 1500 lbs. of SMAW electrodes. Our floor ovens are the preferred choice for many large manufacturing, fabrication and aerospace facilities where centralized, tight control of welding electrode quality and cost is of utmost importance. Our K- 1000CH model maintains welding rods at ideal temperatures to prevent moisture pick-up and to optimize welds.
Heavy-Duty Construction Features
- Durable powder-coated steel exterior
- Welded construction

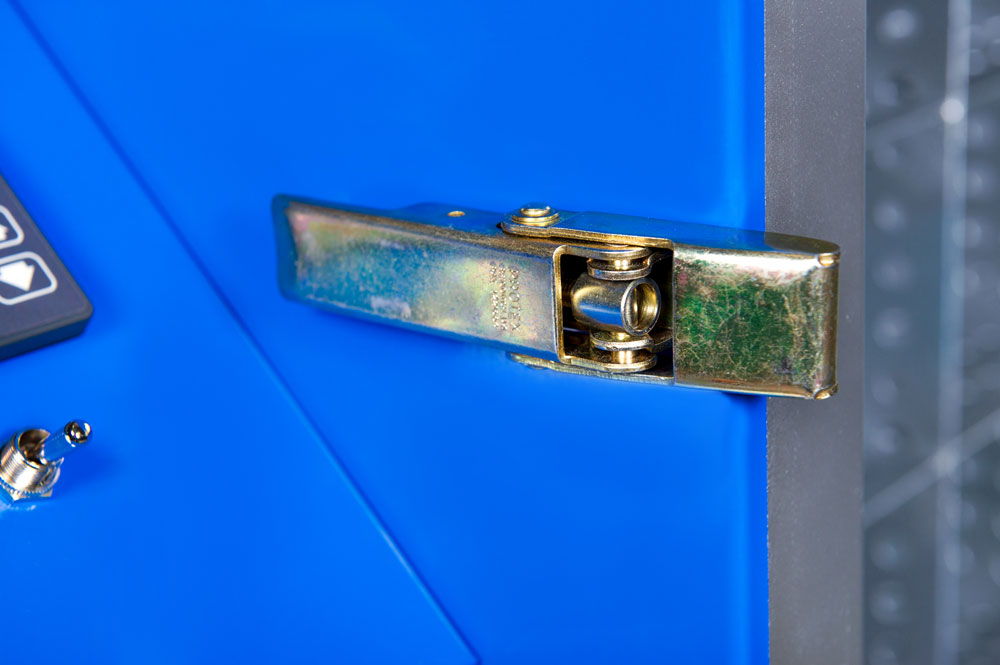

- Welded, perforated steel shelving system holds 24 - 50 lb. boxes of electrodes • Heavy-duty reinforced door, door latches and handle
- High-strength door gasket with 304 stainless steel knitted wire core and high-temperature fiberglass overbraid • Pockets at oven base for easy transport by forklift
- 1 year limited manufacturer warranty
Performance Heating and Safety Features
- 2" (2.54 cm) thermal insulating wool for energy-efficiency.
- Three, long-lasting 1000W UL®-approved Incoloy-sheathed tubular heating elements for effective heating.

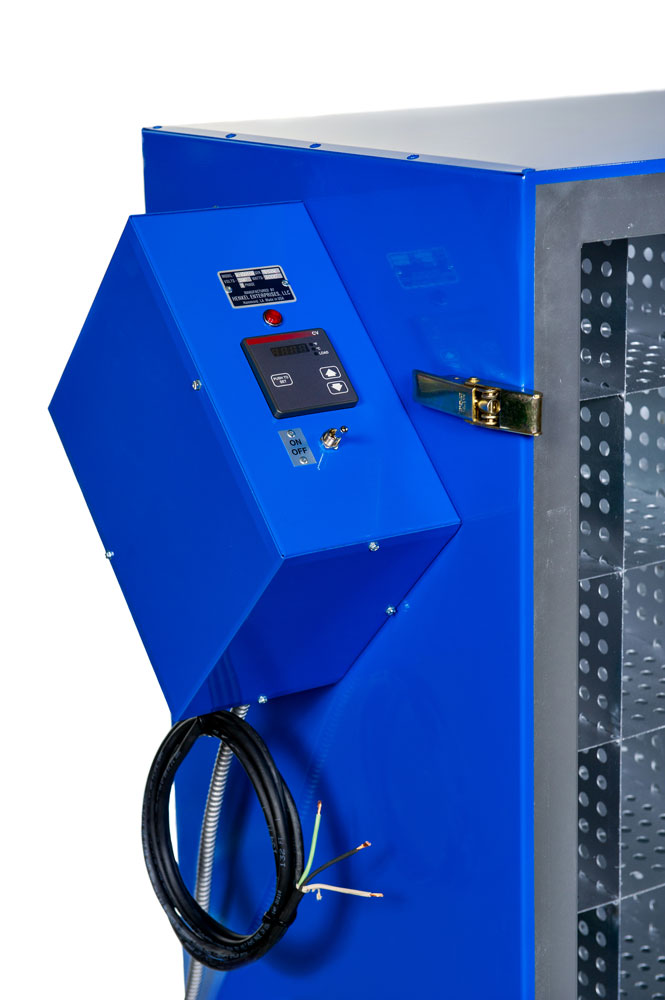

- Digitally-adjustable, ON/OFF microprocessor-based controller with ±1 degree accuracy
- Stable, reliable temperature control
- 4-digit LED temperature indicating display
- Handy tactile increment/decrement keys on the controller’s water-resistant front panel enable easy temperature set point adjustment
- Temperature readout in Fahrenheit or Celsius
- Adjustable, thermocouple-actuated manual reset over temperature control (high limit fail safe device)

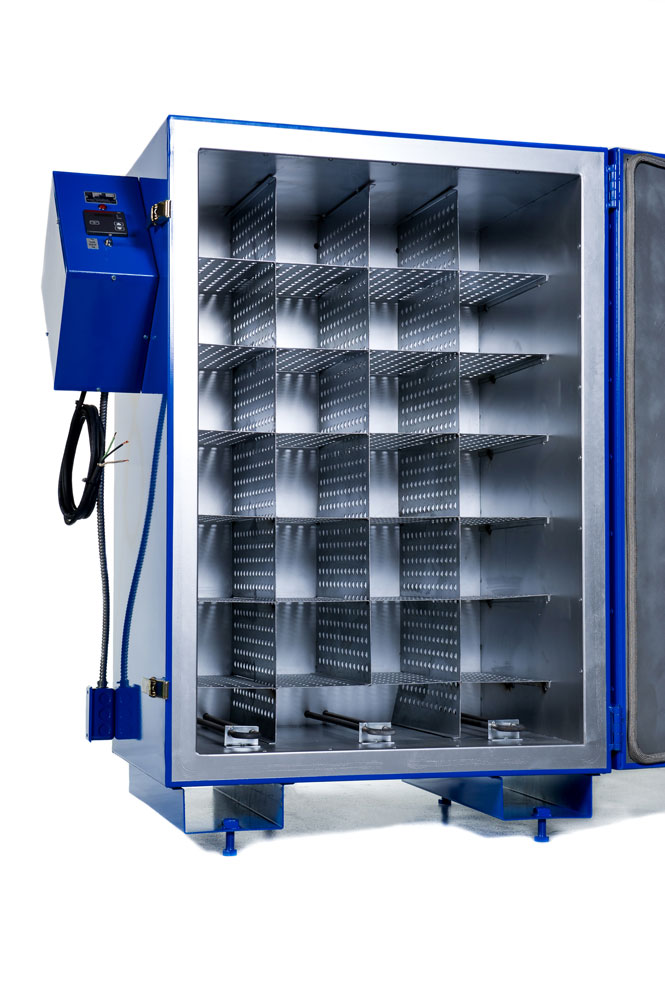

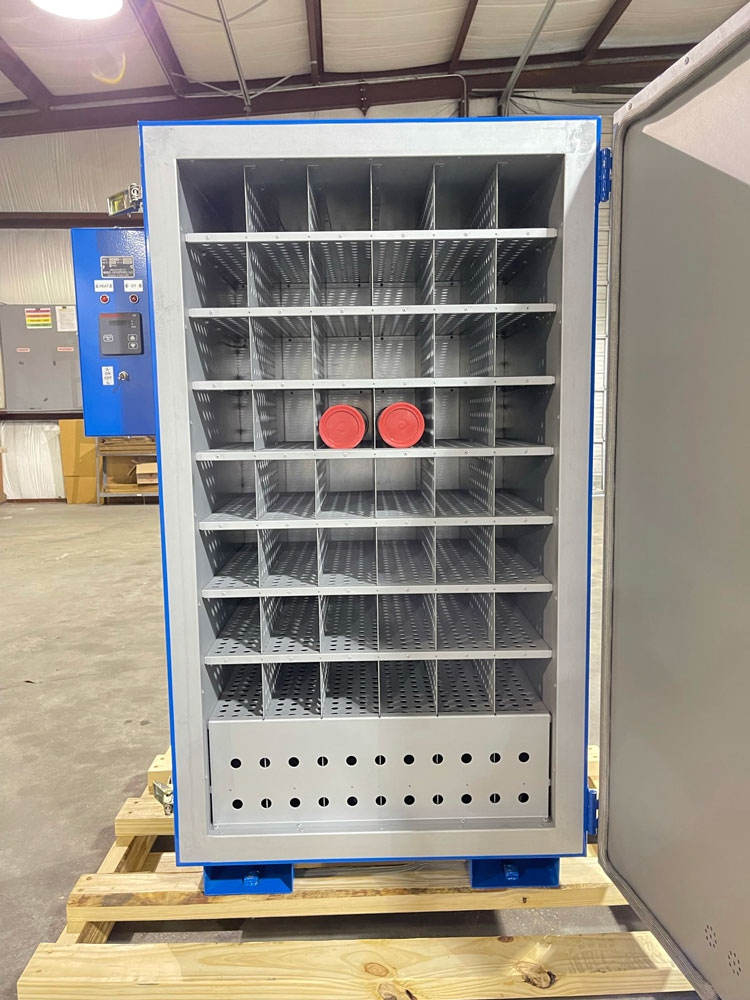

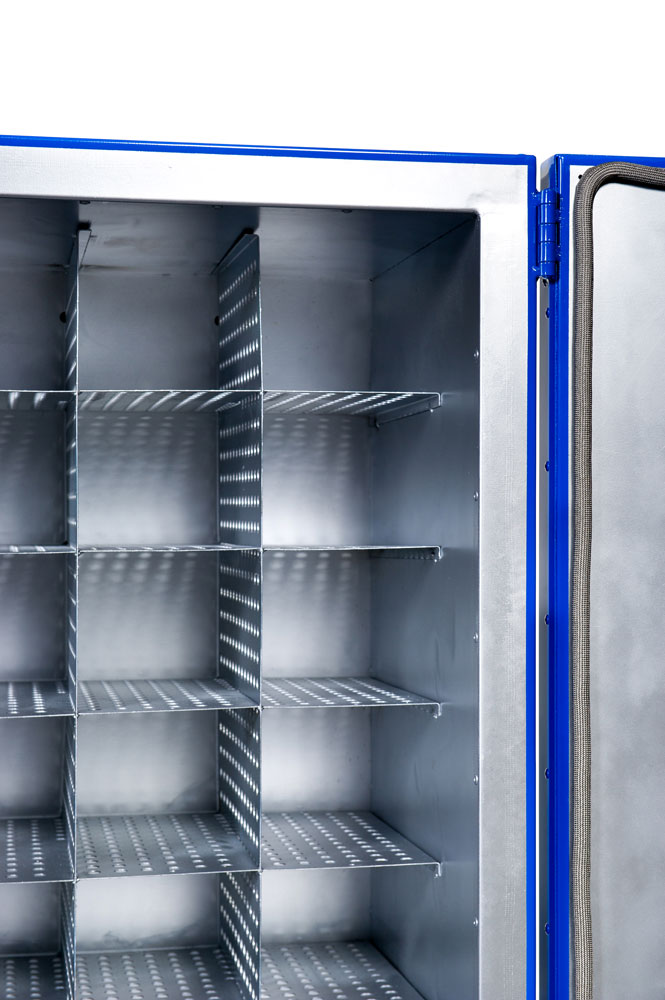

Shelving Design

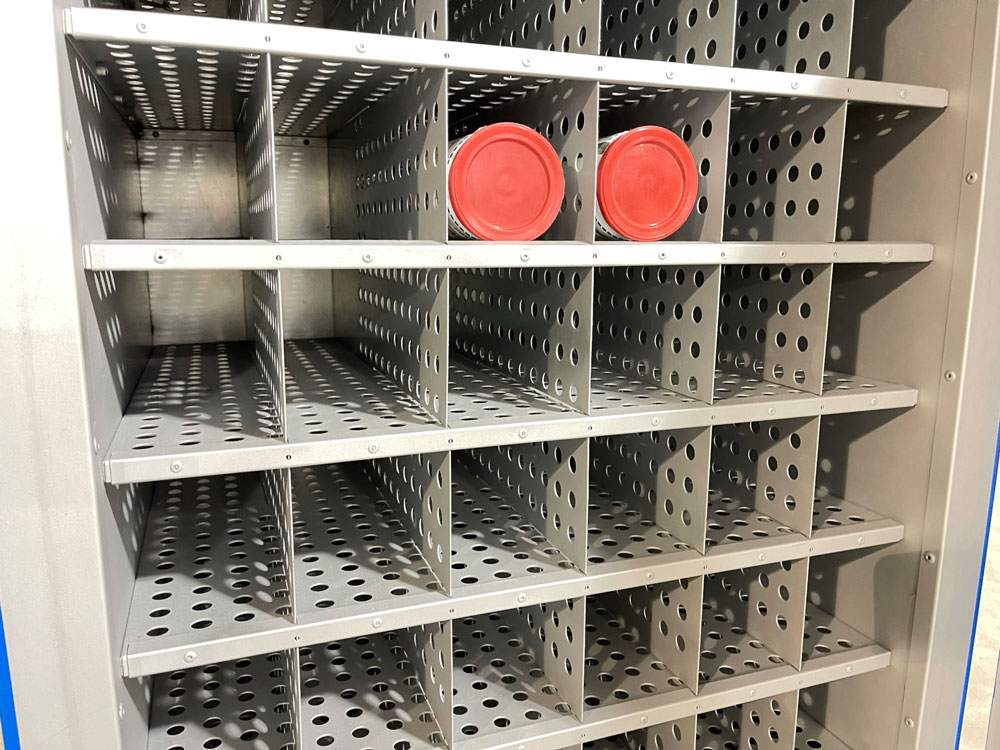

Our welding rod storage shelving is purpose-built not to inhibit natural convection- a common occurrence with competing brands that utilize flat shelving for storage. The unique welded-in shelves allow the insertion of full 50 lb. tins of welding rods up to 18 inches which is a unique benefit for nuclear and aerospace welding codes that require immediate heated storage of opened tins before use.
Most electrode manufacturers discourage ‘stacking’ of electrodes too deeply while being heated to allow for better airflow over the consumable. With our shelving design, heat reaches the electrode coating more effectively to stave off atmospheric moisture. Please see diagram below of the airflow action with our shelving design:
Quality Insulation
Efficient heating design must be supported by quality insulation. The Keen K- 1000 features features thermal mineral wool insulation. It is highly thermally- efficient and is installed within the walls and door of the unit.
Customization
We have the unmatched ability to customize any of our standard ovens, and/or design one-of-a-kind ovens for unique storage requirements. Welding codes are constantly changing, and Keen is ready to meet the demands of today’s welders. Please visit our website http://www.keenovens.com for more information about our products and detailed technical information about welding consumable storage.
| sort order | 42 |
| name | K-1000CH Floor Holding Oven (120V, 240V & 480V) |
| MPN | 010741 |
| description | ROD OVEN K-1000CH 120V - 480 lb |
| consumable | 18" stick rods |
| capacity rods | 480 lbs. |
| capacity spools | N/A |
| capacity TIG | N/A |
| capacity flux | N/A |
| wattage | 3000W |
| max temperature fahrenheit | 550F |
| max temperature celsius | 288C |
| temperature control type | Digital Microprocessor |
| adjustable range fahrenheit | Ambient-550F |
| adjustable range celsius | Ambient-288C |
| insulation | 2" Thermal Wool |
| power cord | 9 ft |
| "ON" Light | YES |
| NRTL listed | No |
