Case Study:  Industrial ovens for
stator assemblies K-TLFC13.5

This oven can be modified to suit your application,
just call us at 888-763-6836

Customer Background:

Company:  MRO division for major transit bus operator
Part to be Preheated: Stators and aluminum housings used in two-drive hybrid transit bus engines
Part Material: Aluminum and steel
Part Dimensions: N/A
Part Weight: Stators 120 lbs Aluminum housing 180 lbs
Target Preheating Temperature:  350°F
Number of pieces to be heated at one time: One
Required preheat  time frame: None Specified

Project Background:

At Keen Industrial Ovens, we receive calls everyday from a wide variety of clients, each with their own unique preheating requirements.  The K-TLFC13.5 is another example of a fully customized oven with specific features requested by the client to enhance productivity.

The maintenance, repair and overhaul division of a transit bus operator contacted Keen industrial ovens with a heat process requirement that involved preheating two-drive engine stator assemblies in order to separate the stator from its aluminum housing.  The transit bus operator was in the process of converting existing conventional buses to hybrid-drive systems, and a part of the process required preheating the stators in an industrial oven.  A custom industrial oven was designed specifically for the application, the K-TLFC13.5.

Brief Product Description:

The Keen K-TLFC13.5 is a floor level, horizontal air flow, forced-convection, top-loading industrial oven.  This heavy-duty batch oven is an excellent low cost solution for a wide variety of heat processing applications.  Horizontal airflow is produced by a 3/4 horsepower motor mounted on the back of the unit, and is used in conjunction with a custom, in-house manufactured plug fan system for efficient, even heating inside the oven cabinet.  Forklift pockets at the oven base allow for easy transport of the unit.

Applications:

Keen industrial ovens are used in a wide variety of industries for many different applications.  Keen K-TLFC13.5 forced-convection industrial ovens can be used for annealing, heat-treating, curing, drying or simple batch processing of parts for preheating and postheating.  Our industrial ovens are produced in the USA with the highest quality material, components and workmanship.

Please contact us today for a quote on the K-TLC13.5 industrial oven as displayed on our website or allow us to provide a modified design or new unit suitable for your specific application.

Keen Industrial Ovens customer service:
Tel: 1-888-512-2870 E-Mail sales@keenovens.com

Detailed Specifications of Keen K-TLFC13.5 Batch Industrial Ovens:

MODEL

KW

 MAX  TEMP

 INSU-
LATIO

  INTERIOR
(LxWxD)

 EXTERIOR
(LxWxH)

BLOWER

DOORS

K-TLFC13.5

16

650°F

4”

28”x36”x24”

53”x60”x36”

 3/4 HP

Single



Standard Key Features of Keen K-TLFC13.5 Industrial Ovens:

Keen Batch Ovens Temperature Control System

  • Adjustable, proportional integral (PI) digital controller
  • Stable, reliable control loop feedback temperature control
  • 3-digit LED temperature indicating display
  • Temperature readout in Fahrenheit or Celsius
  • Straightforward operation with easy-to-use features

Keen Industrial Ovens Safety Features

  • Adjustable, high-limit temperature temperature control
  • On/Off indication
  • UL Approved temperature controller
  • UL/CSA approved tubular heating elements

Keen Industrial Ovens Construction

  • Durable powder-coated steel exterior
  • Welded construction
  • Horizontal forced air flow
  • Heavy-duty reinforced door with heavy-duty draw-pull catches and welded hinges
  • High-strength door gasket with 304 stainless steel knitted wire core and high-temperature fiberglass overbraid
  • Pockets at oven base for easy transport by forklift
  • 1 year limited manufacturer warranty

Standard Equipment on Keen K-TLFC13.5 Industrial Ovens:

  • Voltages: 240V 1-Phase, 3-Phase, 480V 1-Phase, 3-Phase
  • 3/4 HP blower motor with Keen custom-built plug fan system
  • Riveted side access control box for housing oven controls
  • Solid state relays
  • Incoloy sheathed tubular heating elements
  • 4 inches of UL classified, 7 lb/cf rockwool insulation
  • 14 cubic feet of workspace
  • Maximum oven temperature capacity of 650°F (288°C)

Frequently Asked Questions:

Can Keen K-TLFC13.5 industrial ovens be customized to suit my application?

Yes.  Keen industrial batch ovens are used in many different industries for a wide variety of heat processing applications. Each Keen customer has a unique heating application, part size and temperature requirement, and a customized batch oven is often the most effective choice for their specific heat processing needs.  If your parts require pre-heating or post-heating before installation, welding or assembly, Keen can custom design an industrial batch oven tailored to your specific process. Just call us 1-888-512-2870.

Can you tell me more about the Keen plug fan system installed on Keen K-TLFC13.5 vertical forced convection batch ovens?

Keen’s proprietary plug fan blower systems offer great advantages over competing industrial ovens .  Aside from the motor itself, the systems are completely custom manufactured in-house and specifically designed for use on Keen industrial batch ovens.  The system is comprised of a motor, housing, shafts, plenum, fan and when in operation, the system is responsible for producing forced convection air flow on Keen industrial ovens.  Depending upon the customer’s application and the type of Keen industrial oven selected, we offer horizontal or vertical forced convection systems to enhance process efficiency and thorough heating of parts.  Please click here to read more about Keen blower systems.

Can you tell me more about the door gaskets used on Keen industrial ovens?

Oven door gaskets are a critical component for industrial ovens because the gasket must provide a tight seal and serve to minimize heat loss from the oven cabinet and prevent intrusion of moisture and dust (and if the application requires it, air) into the cabinet. At Keen, we use the highest quality oven door gaskets available.  Made in USA, our gaskets are designed to provide a high temperature thermal seal on Keen industrial ovens with a maximum continuous operating temperature of 1000°F.  They are constructed of a 304 stainless steel knitted wire core, overbraided with Type E fiberglass.  The random spacing design of the braid allows Keen to effectively seal corner radii and structural anomalies.

What type of heating elements are used on Keen industrial ovens?

We install UL/CSA approved incoloy sheathed tubular heating elements on all Keen industrial ovens.  Tubular heating elements are versatile products that transfer heat efficiently by convection or radiant heating to air and gases.  They can be utilized in free convection or forced air convection ovens.  Incoloy is a high-performance alloy that has excellent mechanical strength, and is a common high-strength sheath material for elements used in industrial ovens.

I would like a different shelving configuration.  Can Keen offer a different type of shelf system for the K-TLFC13.5 heat treat oven?

Yes. For Keen custom industrial ovens, fabrication and design of shelving is specific to the customer’s process and can consist of flat perforated, removable, vertically adjustable, cradled, stackable baskets, trays and much more.  Shelving in our line of welding consumable storage ovens is specific to the type of consumable being stored and storage capacity.  We can produce a variety of configurations to enhance your heat processing efficiency. Click here for more information about Keen custom shelving.

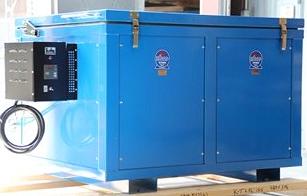

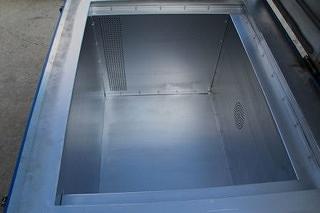

Oven Photos
