About the K-4RSD Bench Top Spooled Wire Oven – 4 / 12” (33 lb.) Spools and 5 / 10 lb. tubes of stick welding electrodes
The K-4RSD stores 4 / 12” (33 lb.) FCAW wire spools and 5 / 10 lb. tubes of stick welding electrodes and is an economical choice for shops that need to centrally store their consumables for long-term, 24/7 moisture protection. Our K-4RSD model maintains welding rods at ideal temperatures to prevent moisture pick-up and to optimize welds.
Our bench-top spooled wire ovens are an excellent choice for small to medium-sized shops. Too large to be considered portable, yet small and light enough when empty to be picked up by two people, bench ovens are an economical choice when a large floor oven is not required. Bench models are designed to be placed upon a bench or other stable surface for easy loading and unloading.
Heavy-Duty Construction and Performance Heating
The K-4RSD has a solid steel construction for long product life and durability. The exterior is powder-coated in KEEN blue and features a rugged door handle, tack-welded door hinges, heavy-duty storage shelves and 1" (2.54 cm) thermal insulating wool for energy-efficiency. The K-4RSD features a long-lasting 500W Incoloy-sheathed tubular heating element for effective heating. An external dial-adjustable thermostat is standard equipment. An optional thermometer accessory is available for the K-4RS and is installed in the door (P/N 301127).

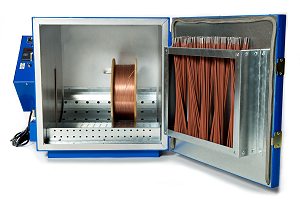

The perforated, cradled shelving in the K-4RSD allows for natural convection within the oven and enables the spools to be supported on their sides without rolling out. The reinforced shelves are supported by a welded-in steel bar for stability and to prevent bending. Beneath the perforated shelves lies the tubular heating element, thus the spools are protected against contact with the heating element. With our shelving design, you can be assured that heat will reach your consumables safely and effectively and prevent atmospheric moisture contamination.
The K-4RSD has an additional storage capacity in the door rack that is capable of storing 5 / 10 lbs. tubes. The door on the K-4RSD is reinforced with welded hinges enabling to support the weight of stick electrodes. The added stock electrode storage capability makes the K-4RSD more versatile than the standard K-4RS unit.
We have the unmatched ability to customize any of our standard ovens, and/or design one-of-a-kind ovens for unique storage requirements. Welding codes are constantly changing, and Keen is ready to meet the demands of today’s welders. Click here for more information about our products and detailed technical information about welding consumable storage.
Storage Capacity: 4 ea 12" Spools and 5 each standard 10 lb. tubes of
Single Voltage Only: 120V & 240V
Thermostat: Dial Adjustable
Temperature: 50°- 250°F (10°- 121°C)
|Insulation: 1" (2.54 cm) Thermal Insulating Wool|
Interior Dimensions: 18" (45.72 cm) x 18.5" (46.99 cm) x 18" (45.72 cm)
Net Weight: 80 lbs. (36 kg)
Shipping Weight: 120 lbs. (54.43 kgs)
Shipping Dimensions: 26" (66.04 cm) x 28" (71.12 cm) x 26" (66.04 cm)
