KT-50SS Stainless Steel Portable Welding Oven
Dual voltage 120V/240V)

These lightweight ovens are designed to protect electrodes during transfer from the holding oven to the job. They are light and easy to carry. The square shape gives these ovens greater stability vertically or horizontally. The KT-15 and KT-50 portable models are equipped with an "on" indicating light. All parts are warranted for one year.

The oven will operate on 120V or 240V with no modification other than cord cap. When attaching the plug to the power cord, be sure the plug is an approved component and is rated for the proper voltage and amperage. All units meet electrical code requirements when used with a grounding plug and a grounded receptacle.

Electrode Capacity: 50 lbs. (22.7 kg) 18" (45.7 cm) rods
Volts: Dual voltage
120V/240V.
Watts: 150W
Temperature: Factory Preset @ 275° (135°C)
Insulation: 1" (2.54 cm) Thermal Insulating Wool.

Interior Dimensions: 6" (15.24 cm) x 6" (15.24 cm) x 19" (48.26 cm)
Net Weight: 18 lbs. (8.16 kg)
Shipping Weight: 21 lbs. (9.53 kg)
Shipping Dimensions: 10.5" (26.67 cm) x 9" (22.86 cm) x 22.75" (57.78 cm)

Features a hard-wired connection point with power cord strain relief.

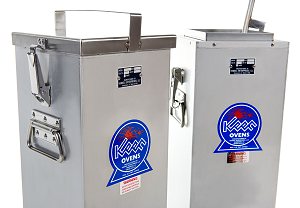

(Note: Model shown is the K-10.)
